The Complete Solar Power System

Every piece you've learned now snaps into one chain. A solar generator is five blocks in a specific order, each with one job, handing off to the next. Learn this signal flow and you understand the product end to end.

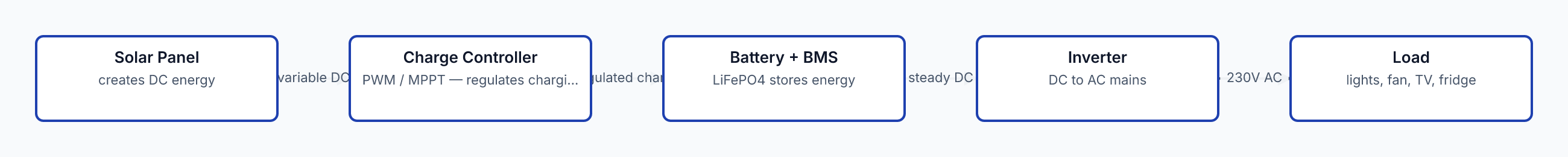

The five blocks, in order

1. Solar panel — creates the energy. Converts sunlight to DC electricity. Its output varies with the sun (Lesson 4).

2. Charge controller (PWM or MPPT) — regulates energy in. Takes the panel's variable output and charges the battery correctly and safely, harvesting the most energy it can (MPPT, Lesson 3). The gatekeeper between panel and battery.

3. Battery pack + BMS — stores the energy. LiFePO4 cells hold the energy; the BMS protects and balances them (Lesson 2). This is the heart — it's what lets the system deliver power when the sun isn't shining.

4. Inverter — converts energy out. Turns the battery's DC into AC mains (e.g., 230V) so ordinary AC appliances can run (next slide detail). Efficient switching conversion (Lesson 1).

5. Load — uses the energy. The customer's lights, fan, TV, fridge, phone chargers — whatever the power budget listed.

The two flows

It helps to see two distinct journeys through the chain:

• Charging (energy in): Panel → Charge controller → Battery. Happens whenever there's sun. The controller manages it; the BMS supervises.
• Delivery (energy out): Battery → Inverter → Load. Happens whenever the customer draws power, day or night. (Many systems also offer DC outputs — USB, 12V — that skip the inverter for DC devices, avoiding the conversion loss.)

These two flows can happen at the same time — the panel charging the battery while the load draws from it. On a sunny day with a light load, the panel covers the load and refills the battery; at night, the battery alone carries the load.

Why the order can't change

Each block depends on the one before:

• The controller needs the panel's raw output to regulate.
• The battery needs the controller's regulated charging to fill safely.
• The inverter needs the battery's steady DC to convert.
• The load needs the inverter's AC to run.

Get the chain in your head — panel → controller → battery (BMS) → inverter → load — and you can reason about any solar generator, diagnose where a problem sits, and explain the product to a customer with real understanding.

The next slide makes it concrete with a worked example: a 1024Wh generator.

Let's make the architecture concrete by reasoning through a 1024Wh-class solar generator — the kind of unit a customer might use to bridge daily grid outages. We'll use only the principles from this module; treat the exact figures as illustrative (always confirm a specific product's real spec sheet at checkout).

Note: the numbers below are worked-example values to practise the reasoning, not an official spec. For a real quote, always confirm against the product's real spec sheet.

Reading the headline number

"1024Wh" is the stored energy (Lesson 1). That's the ceiling of what the pack holds. Through an ~85–90% inverter, usable AC energy is ~870–920Wh — already we apply the efficiency reality from Lesson 1.3.

Estimating runtime for real loads

Using Runtime ≈ usable energy ÷ load power:

Notice how the same battery gives wildly different runtimes depending on the load — exactly Lesson 1's point. This is how you answer a customer's "how long will it last?" honestly: it depends entirely on what they run.

The chemistry choice in context

That pack is LiFePO4 (Lesson 2) because the customer will cycle it daily to bridge outages, in Nigerian heat, inside a sealed unit. Cycle life (years, not months), heat tolerance, and safety make LiFePO4 the right — and honest — choice for this duty. A BMS inside protects and balances it.

Charging it back up

From the grid: a matched LiFePO4 charger refills it via CC/CV (Lesson 3.2) when mains is available.

From solar: to replace ~1000Wh/day at ~5 sun-hours needs ~200W of panel bare, so ~280–320W with the 30–40% margin (Lesson 4.2), through an MPPT controller (Lesson 3.3) to maximise harvest. With that, a sunny day fully refills the unit for the next night's outage — the whole point of the product.

Telling the story to a customer

A trainee who's done L6 can now explain, truthfully and clearly:

• What 1024Wh means (energy, and the runtime depends on the load).
• Why it's LiFePO4 (daily cycling, heat, safety — Made-for-Africa).
• How to recharge it (grid charger, or ~300W of solar + MPPT for energy independence).
• What it realistically powers, for how long — with honest derating, not inflated claims.

That honest, technically-grounded explanation is exactly the trust-building competence this whole technical ladder exists to produce. The final slide closes L6 with safety and the complete picture.

Power systems store and deliver real energy, and that demands respect. This final slide covers the safety essentials and pulls all of L6 together.

Safety essentials

Lithium packs deserve respect — and have a guardian. LiFePO4 is the safest lithium chemistry, but any energy-dense battery must stay within limits. The BMS enforces those limits automatically (Lesson 2). The practical rules: never bypass the BMS, never puncture or crush a pack, never expose it to fire or sustained extreme heat, and use only a matched LiFePO4 charger (wrong voltages mistreat the pack).

Respect the loads and wiring. Current drives heat. Undersized wiring, loose connectors, and overloaded outputs get hot — a fire risk and an efficiency loss. Match conductors to the current (Lesson 1's higher-voltage logic is partly about keeping current, and heat, down).

AC output is mains voltage. The inverter produces real 230V AC — treat its outputs with the same caution as a wall socket. This isn't "just a battery."

Heat is the enemy. Throughout L6, heat keeps recurring — it ages batteries, derates panels, and stresses electronics. Good ventilation, sensible placement (out of direct baking sun where possible), and not enclosing a hot unit are simple, important habits.

Know a protection event from a fault. If a unit shuts off under extreme load or heat, that's often the BMS protecting the pack — correct behaviour, not a defect. Genuine faults route to a qualified technician for diagnosis. Distinguishing the two is part of competent support.

The complete L6 picture

You've built the full chain of understanding:

1. Power vs energy — watts are a rate, watt-hours a total; runtime = energy ÷ power. (Lesson 1)
2. Batteries — capacity, C-rate, cycle life, DoD; why LiFePO4 for Nigeria; the BMS that protects it. (Lesson 2)
3. Charging & regulation — efficient switching conversion; CC/CV charging; PWM vs MPPT controllers. (Lesson 3)
4. Solar — how panels work, the Wp rating and its derating, sun-hours sizing with margin. (Lesson 4)
5. The system — panel → controller → battery (BMS) → inverter → load, and the 1024Wh worked example. (Lesson 5)

What this competence is for

L6 isn't trivia — it's the technical foundation beneath these products. With it you can:

• Size a system honestly (the P-Check) instead of guessing.
• Explain a solar generator to a customer with real understanding and earned trust.
• Diagnose where a problem sits in the chain, and route genuine faults correctly.
• Stand behind the Made-for-Africa engineering — and articulate why it's right for here.

Next: the K-Check tests these concepts across all five lessons, and the P-Check asks you to size a real solar system with a proper power budget — the single most valuable skill in this module. Bring honesty and margins; that's the whole job.
